- SG-BUS-A15HN
PRODUCTS > ELECTRIC BUSES > > URBAN 3 AXLES >
SUN-GROUPE SARL - 2087 CORNAUX - SWITZERLAND - CH-645.4.104.394-1 - IDE CHE-115.095.464-TVA - TEL/WA +41798572589 - SKYPE SUNGROUPE
SUN-GROUPE | BUS
SG-BUS-A15HN
TECHNICAL DATA
MODEL | SG-BUS-A15HN | TARE WEIGHT [KG] | 12'500 |
MOTOR | ELECTRIC | GROSS WEIGHT [KG] | 18'000 |
TYPE | PERMANENT MAGNET SYNCHRONOUS | BATTERY CAPACITY [LFP] | 80 |
OVERALL DIMENSIONS [MM] | 17930X2495X3220 | FUEL CELL SYSTEM [KW] | 80 |
SEATING CAPACITY | 53+2 (40 Standees) | CHARGER MAX [KW] | 155 |
MAX SPEED [KM/H] | 80 | RECHARGE TIME [H] | 2.0 |
AUTONOMY [KM] | 250 | CONTINUED POWER [KW] | 100 |

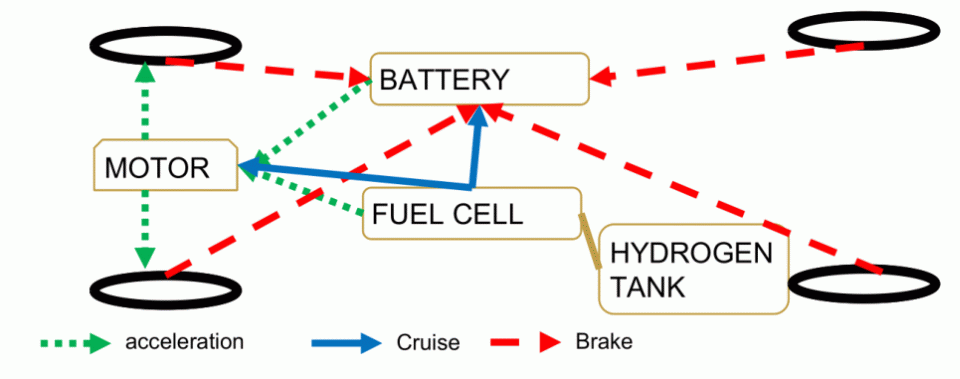

SYSTEM DIAGRAM
DOCUMENTS
Datasheet
